Capacitance Probe, Heavy Duty

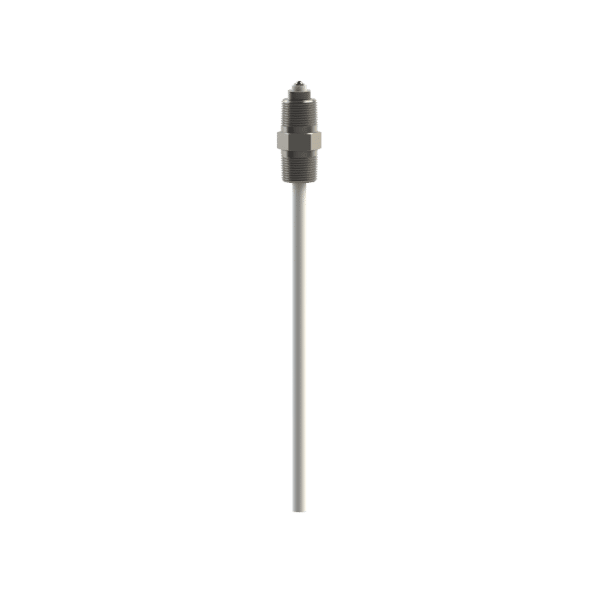

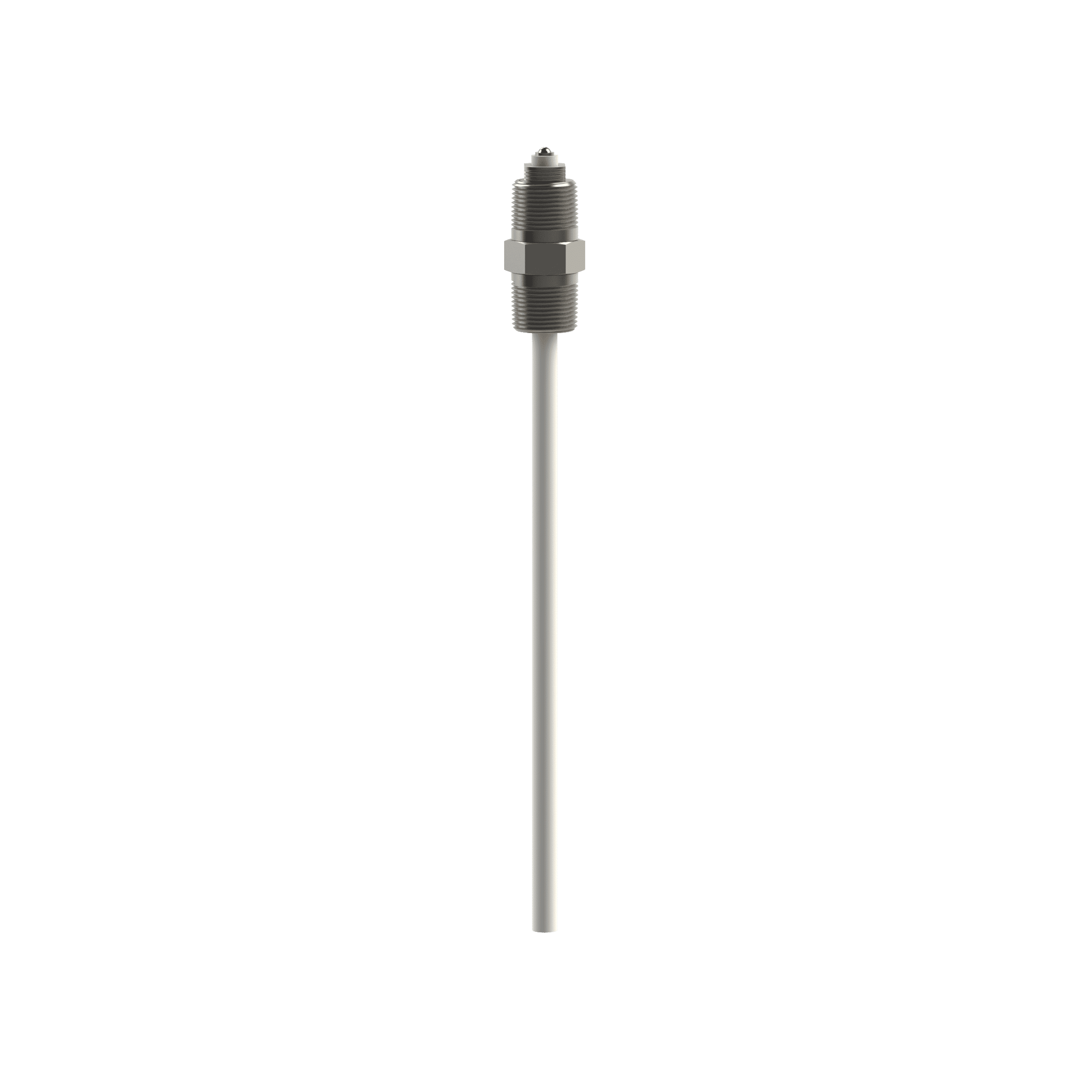

The Delta Controls Model P52 Capacitance Probe is a heavy-duty, general purpose sensor for use in a variety of applications. The sensing rod is jacketed in thick, extruded and welded PTFE. There are no thin coatings or glued joints to fail. The P52 is intended for use in services with higher mechanical stress, such as agitated tanks, services requiring long unsupported sensing rods, mixers, etc.
The sensing rod sealing gland is extremely reliable, sealing in such process materials as steam, hydrogen cyanide, gasoline, chlorine, liquid oxygen, and wastewater. The gland follower seals reside inside the body of a solid exterior. There are no screwed together joints in the gland which can inadvertently be turned, causing leaks, environmental spills, and toxic discharges. The gland body may be made of exotic metal or industrial plastics for highly corrosive service.
Features
- Heavy-duty purpose probe for more demanding applications
- Simple construction and easily installed
- PTFE insulation allows operation in conductive or nonconductive liquids at high temperatures
- Highly reliable clamped seal
- Open design resists material deposition and is easy to clean
- Easy to install vertically or horizontally
- Can be used in many slurry and entrained solids applications
Specifications
- Working Pressure: +1500 psig (+103.4 bar)
- Working Temperature: -460 °F to +400 °F (-273 °C to +204 °C)
- Insertion Length: ≤ 20 ft (6 m)
- Process Connection : 1.5 in MPT minimum
- Threaded Process Connection: 1.5 in to 2.0 in
- Tri-clamp Process Connection: 1.5 in to 2.0 in
- Flanged Process Connection: 1.5 in to 4.0 in
- Flange Rating:≤ 600 lb
- Available Wetted Materials: 316 Stainless Steel, PTFE, carbon steel (other materials available)
- Other: Optional factory bent probe available to custom specifications, Optional vacuum service configuration
Required Ordering Information
- Detailed model number
- Tag or nameplate detail (if required)
- Documentation & testing packages (if required, refer to Additional Resources in the product catalog)
- Process fluid or material name
- Process fluid or material dieletric constant
- Maximum process temperature
- Maximum process pressure
- Upper and lower materials required for interface service
